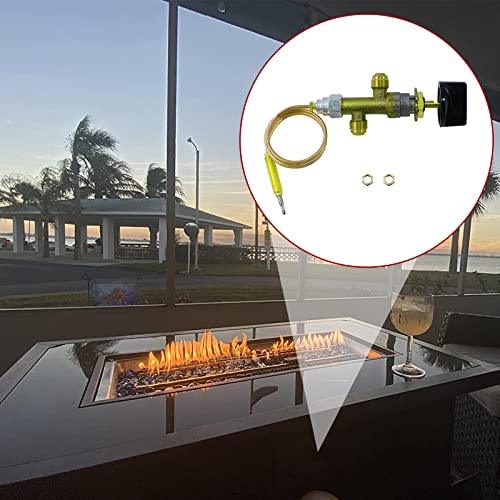

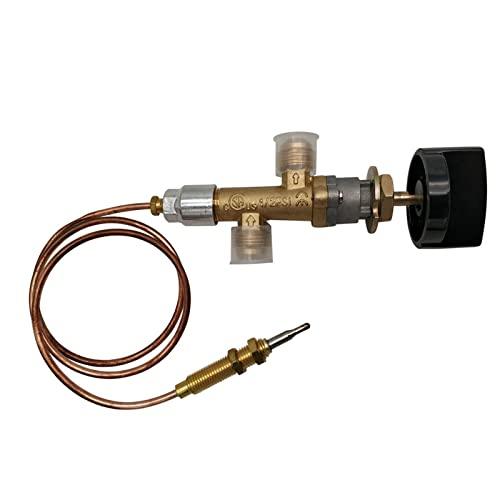

MENSI Low Pressure LPG Propane Gas Fireplace Fire Pit Flame Failure Safety Control Valve Kit

Brand: MENSI

Color: Gas Valve Thermocouple Assembly

Features:

• Low Working Pressure Max 1/2 PSI（65mbar）, CE&CSA tested Main Control Valve In & Out with 3/8" Male Flare thread

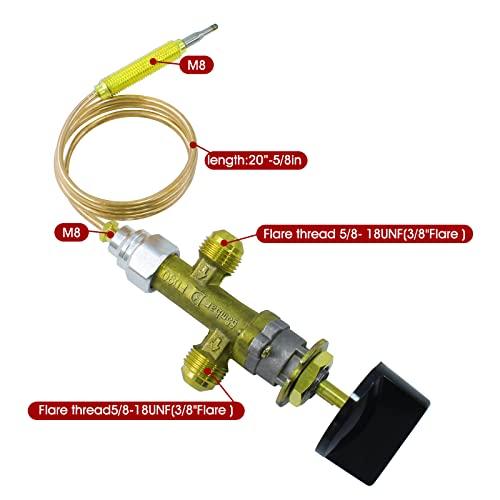

• Length of Thermocoupler 600mm Head Tip M8*1 (This is Low pressure control valve max rating BTU 50000)

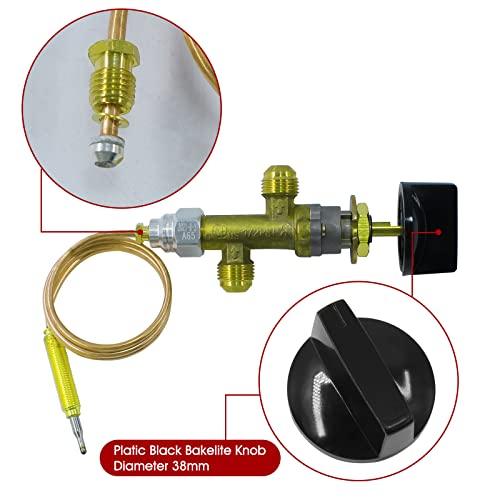

• Platic Black Bakelite Knob Diameter 38mm and "D" Insert for Valve 6.0-6.1mm

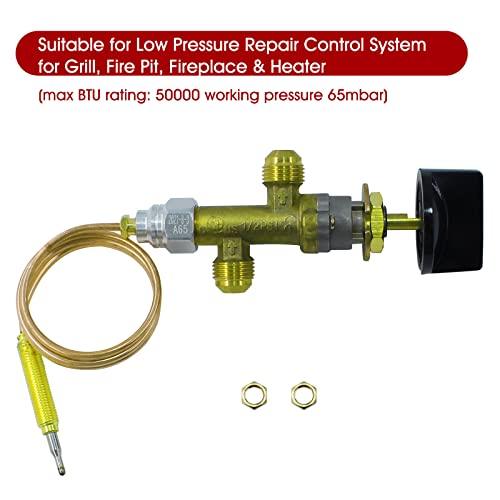

• Suitable for Low Pressure Repair Control System for Grill, Fire Pit, Fireplace & Heater (max BTU rating: 50000 working pressure 65mbar)
• Keep The Thermocoupler to be Heated and Push the Valve around 5-10s Then Release Hand (if Flame stops, Ajust the location of Thermocouple tip)

Binding: Lawn & Patio

Part Number: FD90 MADE OF FRD CSA Contract NO.268815

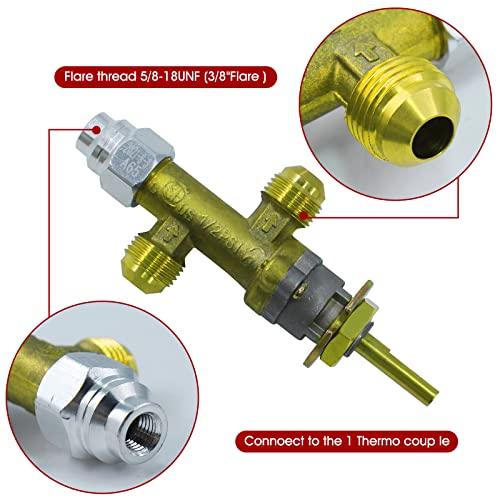

Details: The valve is a low pressure valve with 3/8" Male flare thread on Entrance & Exit
Operation Instructions

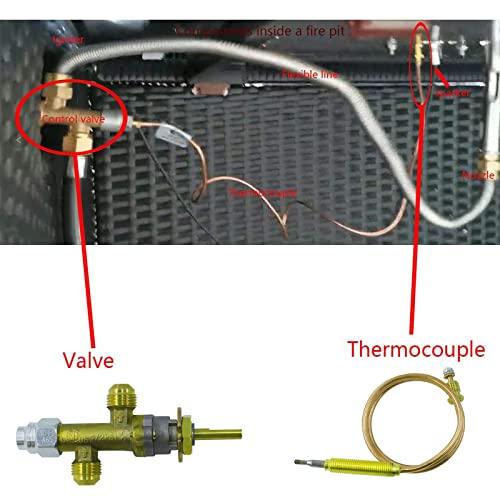

1). Fix the valve on a plate or board of your grill or fire pit by the head screw and flange.
2). Connect your inlet and outlet hose on inlet and outlet side. (faston it tightly enough in case of gas leakage)
3). Faston the thermocouple nut M8 on the valve end tightly (Check if your valve end thread if 8mm before you buy)
4). Connect thermocouple and end thread well
5). Open gas by correct size knob and push your valve around 5-10s till the thermocouple head is heated enough.
6). Release your hand and it work properly If when you release hand, gas valve shut off again, Please check
a. If your thermocouple is always be heated on flame
b. If the thermocouple end is well connect with valve
c. If the inlet and outlet side well connect with hose you have
Possible problems occurs during your use:
1) Valve after turn can not stick during using
reason: a. The thermocouple head is not heated in right place, please adjust thermocouple tip position.
b. The connection between thermocouple end and valve is not connected tight enough or too tight, please adjust the screw again
c. Need to push valve first then turn the spindle and hold for few seconds, it cannot stick immediately may need 10-30Seconds

EAN: 0737123200474

Package Dimensions: 5.5 x 3.1 x 1.9 inches
